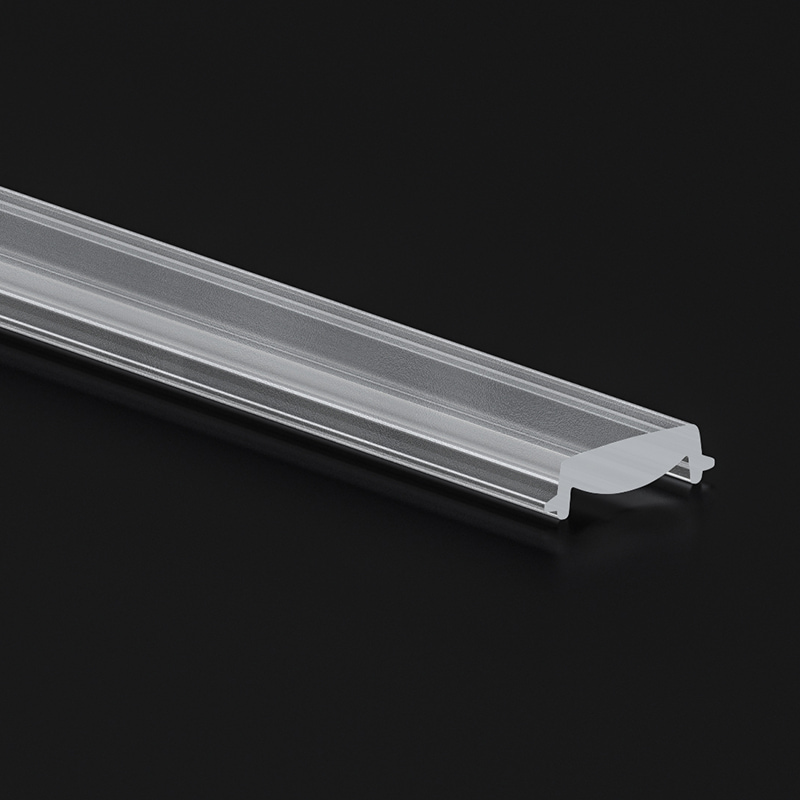

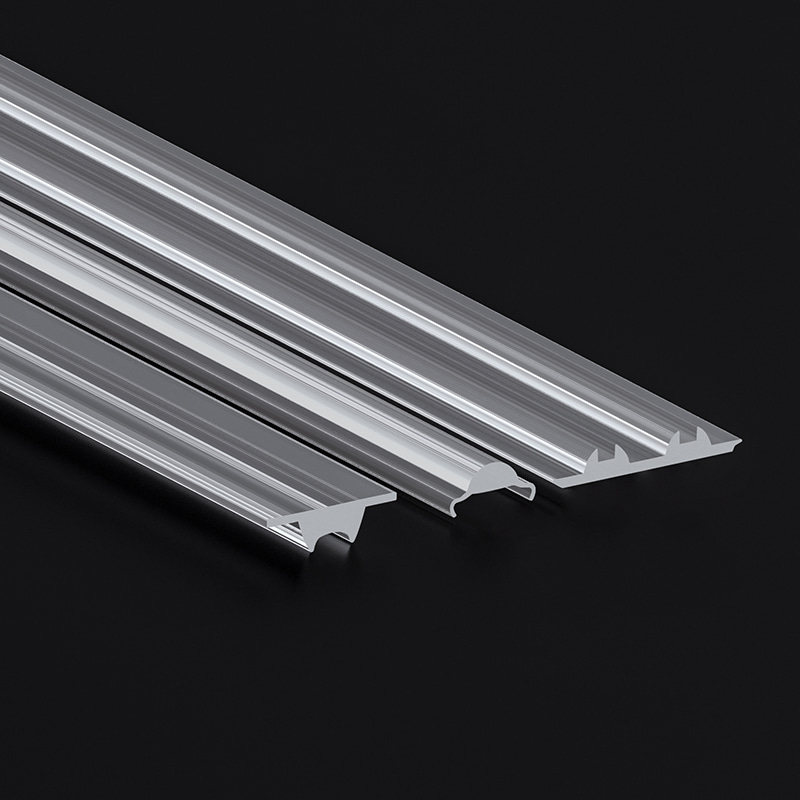

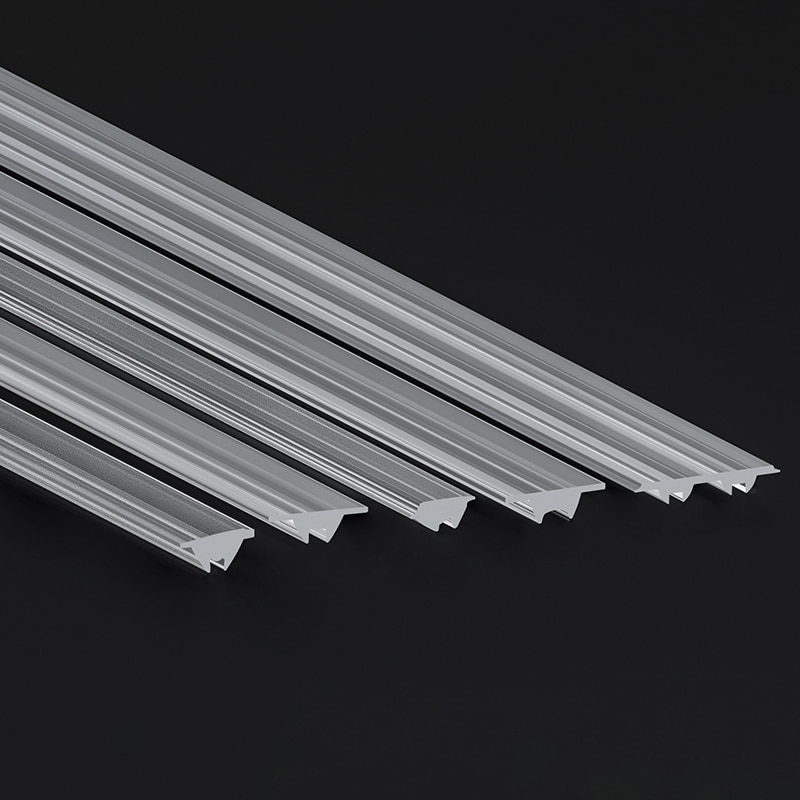

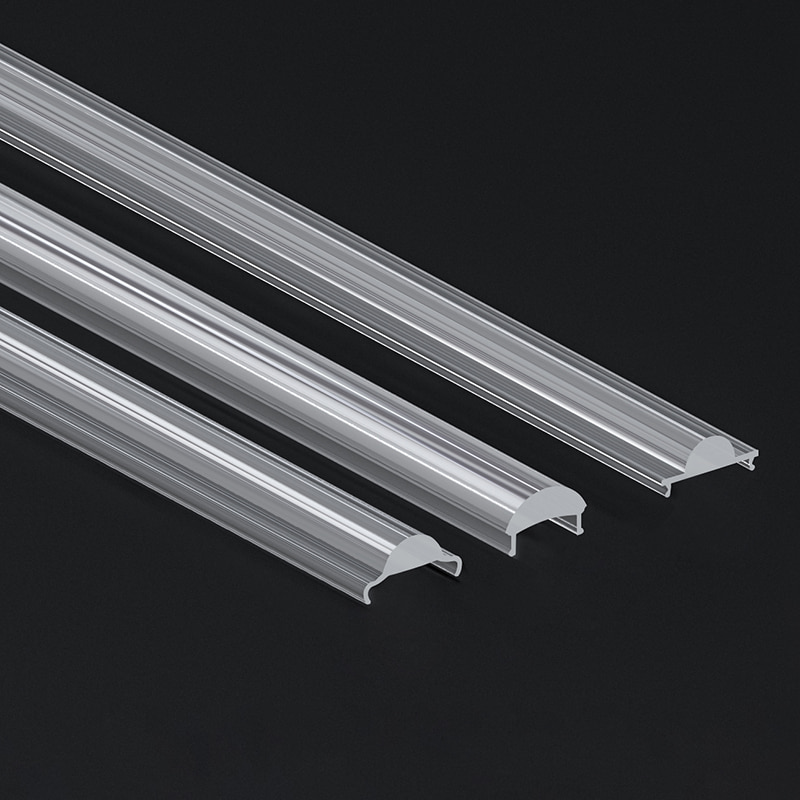

L523 90° Low-Profile LED Lens, 22 × 6.5 mm

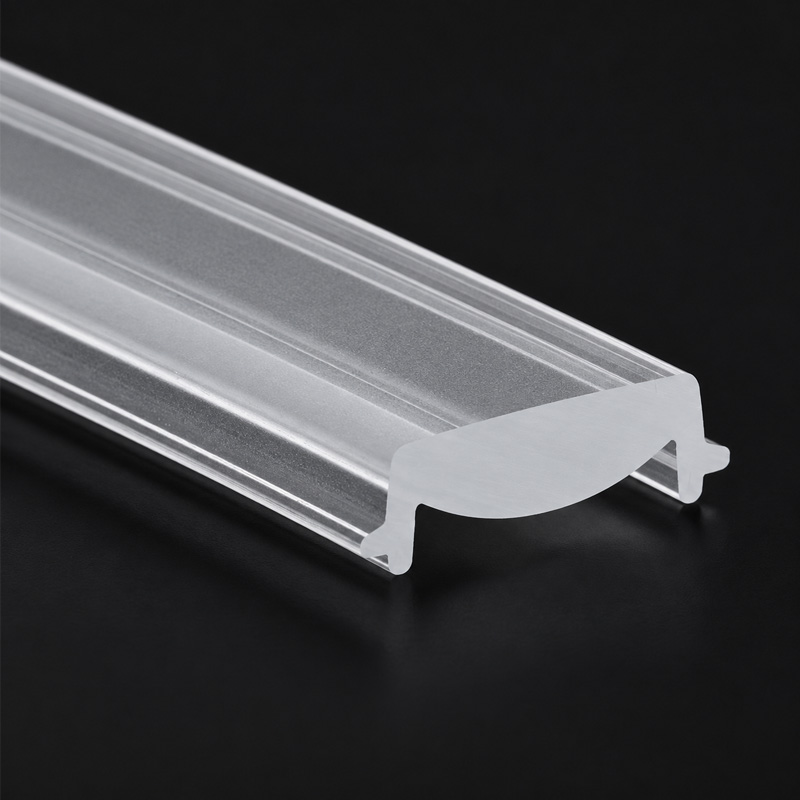

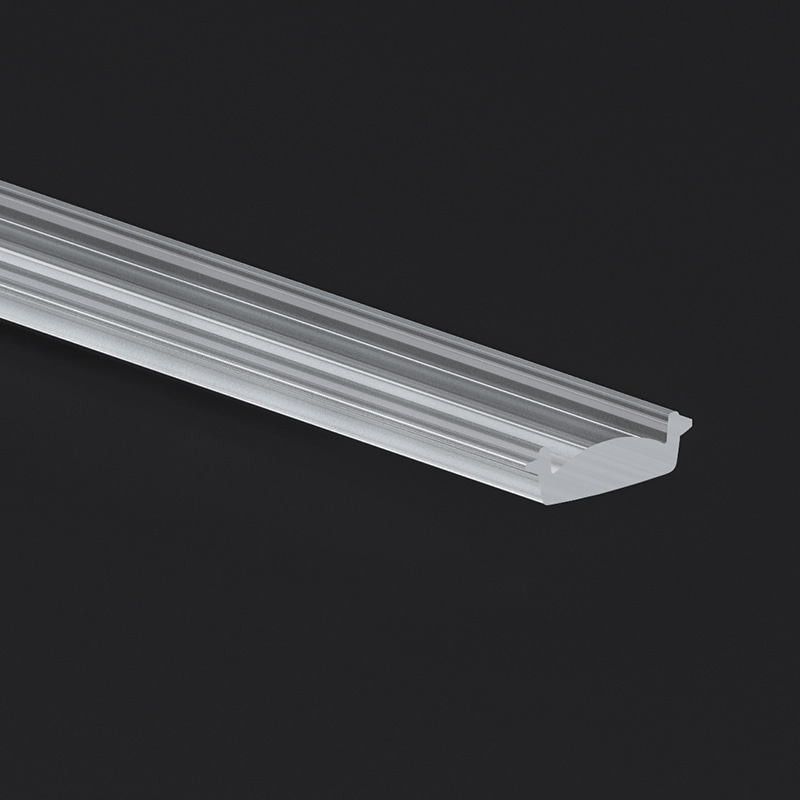

L523 90° Low-Profile Extruded Optical Lens for LED Linear Lighting — 22 × 6.5 mm

A 22 mm-wide optical lens with a low 6.5 mm cross-section and a nominal 90° beam angle, for integration into compatible shallow LED linear profiles.

Manufacturing Notice: Our Minimum Order Quantity (MOQ) is 2,000 Pieces (or 1,000 Meters for extrusion).

Model

L523

Product Type

Extruded Optical Lens

Nominal Beam Angle

90°

Cross-Section Size (W × H)

22.0 × 6.5 mm

Dimensions in Inches

Approx. 0.87 × 0.26 in

Length

Custom cut to length

Product Overview

90° Beam Angle. Just 6.5 mm in Lens Height.

The L523 combines a nominal 90° beam angle with a compact cross-section measuring 22.0 mm wide × 6.5 mm high. Its low lens height makes it an option for linear luminaire designs where space for the optical component is limited. For shallow-profile lighting projects, check the L523 against the complete fixture layout, including the lens mounting interface, LED board position and required optical clearance.

6.5 mm Lens Height — A low cross-section for lighting designs with limited optical space.
22 mm Width — A defined dimension for matching the lens to your profile design.
Nominal 90° Beam Angle — A wide-beam option for linear lighting applications.
Extruded Linear Format — An optical component for integration into compatible LED profile assemblies.

Dimensions & Mounting

Plan the Fit for a Shallow Lighting Assembly

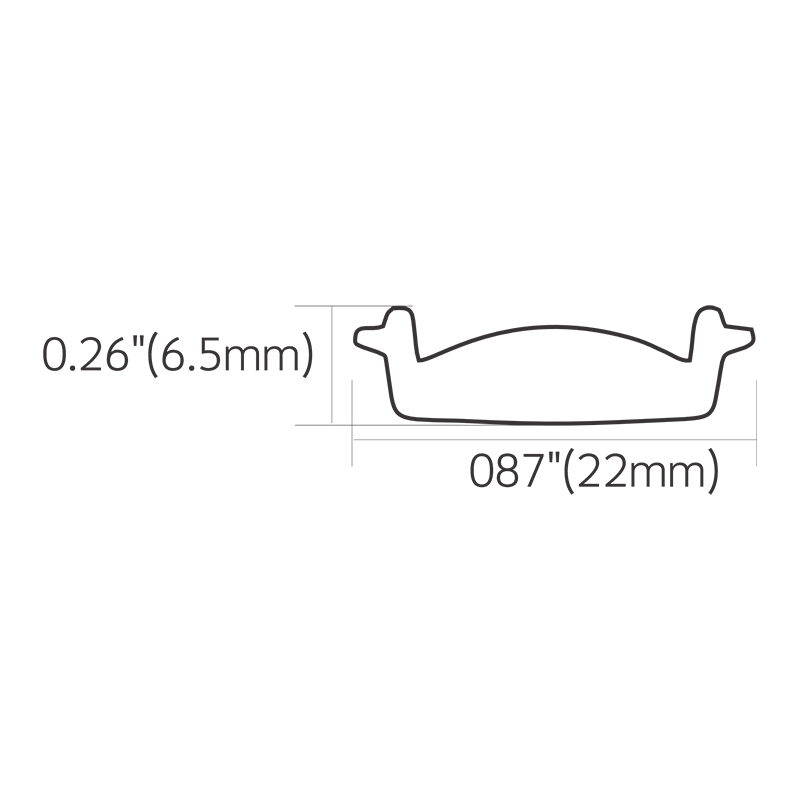

The L523 measures 22.0 mm in overall width and 6.5 mm in overall height. These dimensions describe the lens cross-section, rather than the minimum depth of the finished luminaire. Allow space for the LED board, its mounting arrangement and the required lens-to-LED distance. Check the profile opening and retaining features against a detailed lens drawing before confirming compatibility.

Profile Interface — Compare the opening, lens seating and retaining geometry.
Assembly Clearance — Check the space required by the lens, LED board and mounting components.
Fit Confirmation — Verify the complete assembly using the relevant drawings and a sample where available.

Optical Performance

Match the 90° Beam to Your Installation

The L523 has a nominal 90° beam angle. Actual light distribution depends on the LED source, emitter spacing and position relative to the lens. In a shallow fixture, the available lens-to-LED spacing is an important part of the optical layout. Evaluate the assembled luminaire at its intended working distance to confirm coverage and uniformity.

Nominal Beam Angle: 90°
Evaluation Inputs: LED model, emitter spacing and lens-to-LED position
Application Targets: Working distance, illuminated area and desired distribution

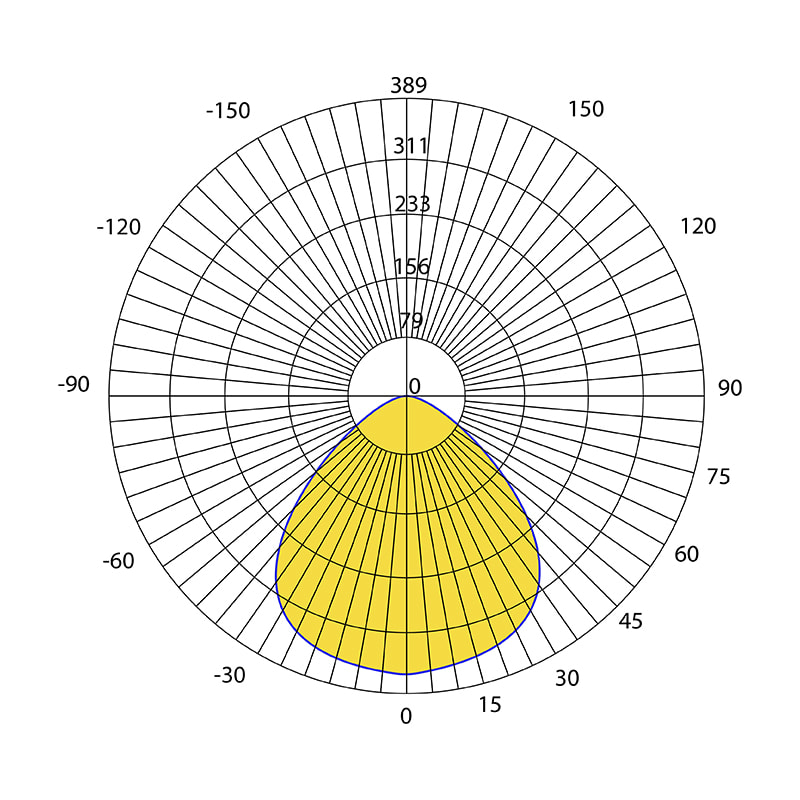

Luminous intensity distribution curve and photometric data of Baiwei L523 linear LED lens

Applications & Distribution

Explore Lighting Designs with Limited Installation Space

Consider the L523 for the following applications, with suitability confirmed through mechanical fit checks and optical evaluation.

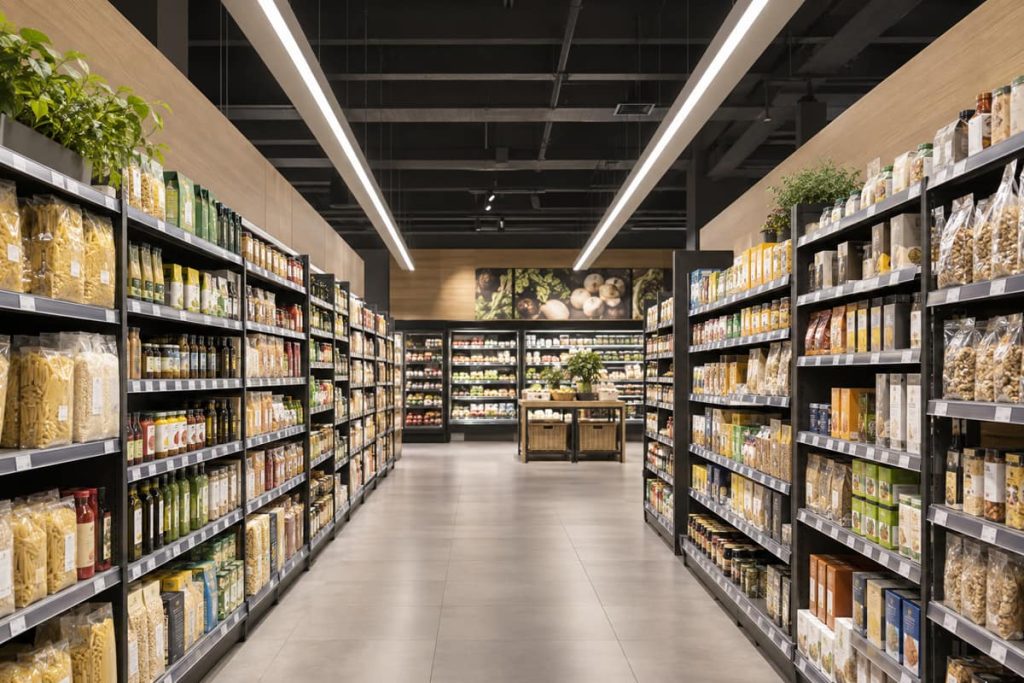

Continuous ceiling-mounted linear LED lights run above a supermarket aisle between stocked shelves.

Supermarket Aisle Lighting

Linear illumination for store aisles and merchandise displays.

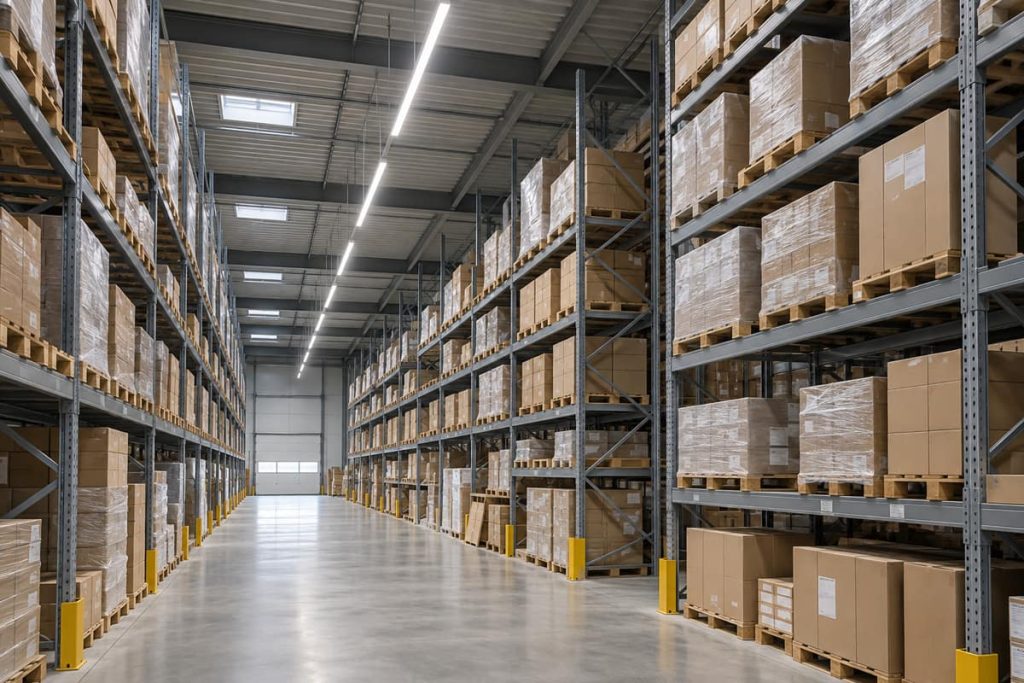

Suspended linear LED lights illuminate a warehouse aisle between tall pallet racks.

Warehouse Aisle Lighting

Directional lighting for warehouse aisles and storage areas.

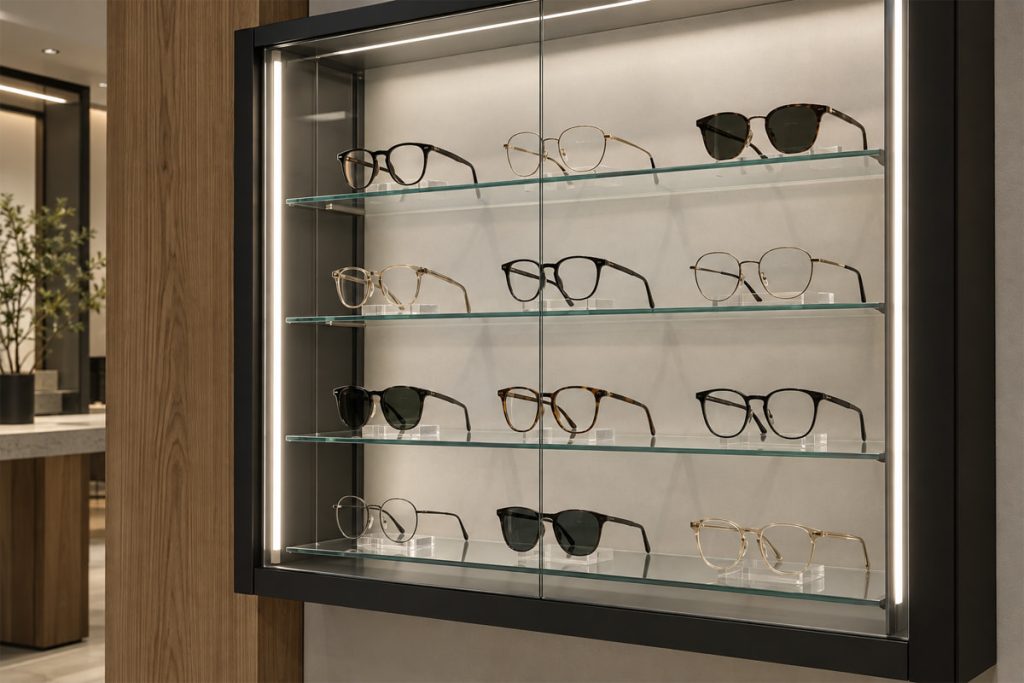

Vertical linear LED lights illuminate eyeglasses on glass shelves in an enclosed display cabinet.

Showcase & Display Lighting

Integrated lighting for eyewear in enclosed display cabinets.

Project Support

Define Your L523 Assembly Requirements

Share Your Available Space

Provide the aluminum profile cross-section, internal dimensions and lens retaining details to define the mechanical requirements.

Specify Your LED Layout

Include the LED board dimensions, emitter arrangement and planned lens position, together with the intended lighting application.

Prepare Your Supply Inquiry

State the required lens length, estimated quantity and project schedule. Include any sample or documentation requirements.

Request a B2B Quote Request a Sample

Product FAQ

Before you choose L523 90° Low-Profile Extruded Optical Lens for LED Linear Lighting — 22 × 6.5 mm

What are the dimensions of the L523 lens?

The L523 has an overall cross-section of 22.0 mm wide × 6.5 mm high, approximately 0.87 × 0.26 inches.

Does the 6.5 mm lens height mean it fits a 6.5 mm-deep channel?

No. The lens height does not define the required channel depth. The complete assembly must also accommodate the LED board, mounting components and the intended lens-to-LED spacing.

What is the beam angle of the L523?

The nominal beam angle is 90°. Evaluate the actual distribution with the intended LED source and assembly geometry.

Will the L523 fit any 22 mm-wide aluminum profile?

Width alone does not establish compatibility. The profile opening, retaining features, lens seating position and internal clearance must also match.

What information is needed for an L523 inquiry?

Include the required length and quantity, profile drawing, LED board details and intended application. For shallow fixtures, specify the available internal depth and planned lens-to-LED position.
