L528 45° Extruded PC LED Lens, 19.8 × 9.5 mm

L528 45° Extruded PC Optical Lens for LED Linear Lighting — 19.8 × 9.5 mm

A compact PC optical lens with a nominal 45° beam angle and a 19.8 × 9.5 mm cross-section for compatible architectural and accent lighting assemblies.

Manufacturing Notice: Our Minimum Order Quantity (MOQ) is 2,000 Pieces (or 1,000 Meters for extrusion).

Model

L528

Product Type

Extruded Optical Lens

Nominal Beam Angle

45°

Cross-Section Size (W × H)

19.8 × 9.5 mm

Dimensions in Inches

Approx. 0.78 × 0.37 in

Length

Custom cut to length

Product Overview

45° Beam Angle in a Compact PC Lens

The L528 is an extruded polycarbonate optical lens featuring a nominal 45° beam angle and a cross-section measuring 19.8 mm wide × 9.5 mm high. It offers an optical option for linear luminaires intended for architectural accents, retail displays and other targeted lighting applications. Select the L528 by matching its mounting geometry to your profile and evaluating its light distribution with the intended LED board. Both mechanical fit and optical performance should be assessed within the complete fixture design.

Nominal 45° Beam Angle — A defined optical specification for evaluating targeted linear lighting.
19.8 mm Lens Width — A compact cross-section for compatible profile assemblies.
9.5 mm Lens Height — A key dimension for checking internal space and LED clearance.
PC Construction — A polycarbonate optical component for LED linear luminaires.

Dimensions & Mounting

Check the 19.8 × 9.5 mm Cross-Section

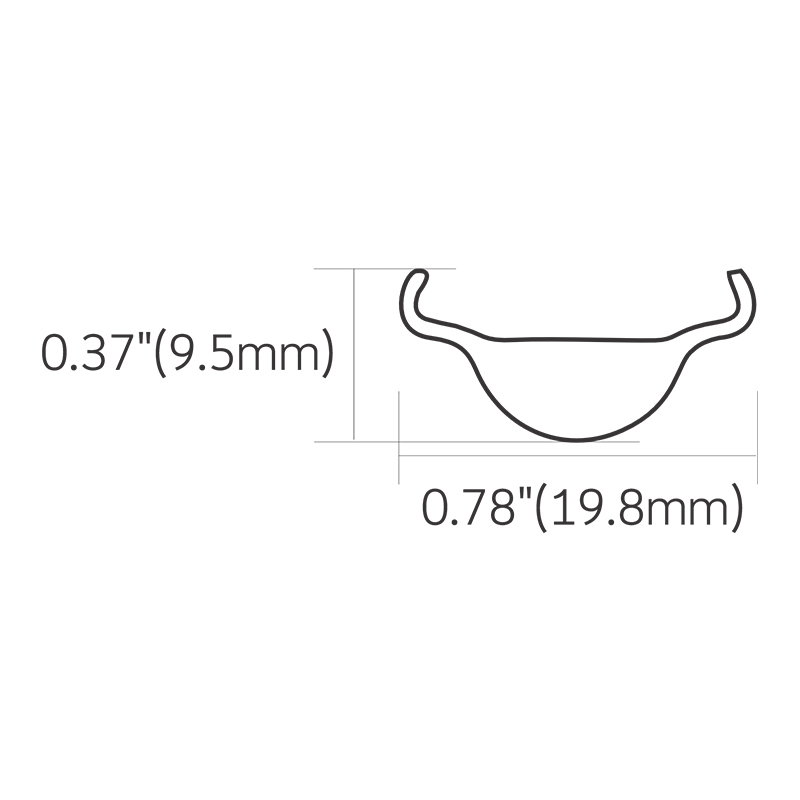

The L528 measures 19.8 mm in overall width and 9.5 mm in overall height. Use the detailed lens drawing to compare the seating surfaces, retaining features and clearances with your aluminum profile. When assessing profiles described as approximately 20 mm wide, check the actual lens opening and mounting interface. A similar nominal width does not confirm compatibility.

Mounting Interface — Compare the lens seating and retaining geometry with the profile drawing.
Assembly Clearance — Check the space required for the lens, LED board and mounting components.
LED Position — Confirm emitter alignment and the intended lens-to-LED distance.

Optical Performance

Evaluate the 45° Beam in Your Assembly

The L528 has a nominal 45° beam angle. Actual light distribution depends on the LED source, emitter arrangement and position relative to the lens. Evaluate the assembled luminaire at the intended working distance and orientation. Review coverage and uniformity on the relevant target surfaces using optical data or measurements for that configuration.

Nominal Beam Angle: 45°
Evaluation Inputs: LED model, emitter spacing and lens-to-LED position
Installation Factors: Working distance, target surface and desired coverage

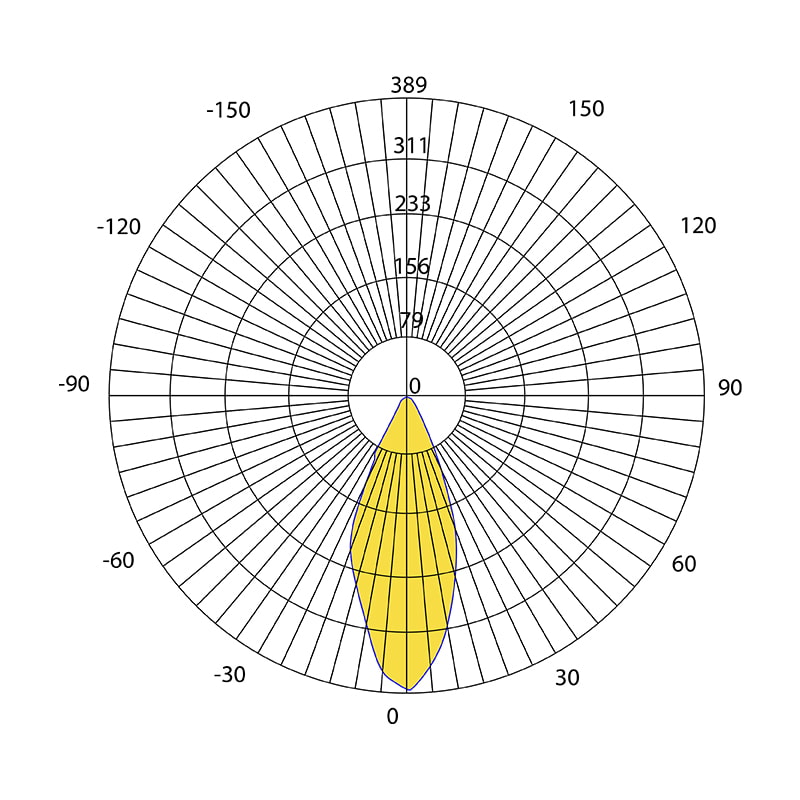

Luminous intensity distribution curve and photometric data of Baiwei L528 linear LED lens

Applications & Distribution

Explore Architectural and Display Lighting Applications

Consider the L528 for the following applications, with suitability confirmed through profile-fit checks and optical evaluation.

Recessed linear LED lights illuminate a modern lobby with stone walls and wood accents.

Architectural Linear Lighting

Controlled illumination for recessed linear aluminum profiles.

Suspended linear LED lights illuminate a warehouse aisle between tall pallet racks.

Warehouse Aisle Lighting

Directional lighting for warehouse aisles and storage areas.

Linear LED lights inside a glass jewelry counter illuminate rings, bracelets and a necklace.

Showcase & Display Lighting

Discreet linear illumination for jewelry in glass showcases.

Project Support

Prepare Your L528 Project Inquiry

Provide the Profile Details

Share the aluminum profile drawing, lens mounting interface and LED board position to define the required mechanical fit.

Describe the Lighting Target

Include the target surface dimensions, mounting distance and fixture orientation so the intended lighting effect is clear.

Specify Supply Requirements

State the required lens length, estimated quantity and project schedule. Include any sample, material-grade or documentation requirements.

Request a B2B Quote Request a Sample

Product FAQ

Before you choose L528 45° Extruded PC Optical Lens for LED Linear Lighting — 19.8 × 9.5 mm

What are the dimensions of the L528 lens?

The L528 measures 19.8 mm wide × 9.5 mm high, approximately 0.78 × 0.37 inches. These are the overall cross-section dimensions.

What material is the L528 made from?

The L528 is made from polycarbonate (PC). Include any specific material-grade or documentation requirements in your inquiry.

What is the beam angle of the L528?

The nominal beam angle is 45°. Evaluate the resulting distribution with the intended LED source and assembly geometry.

Will the L528 fit a 20 mm LED profile?

Compatibility cannot be confirmed from the nominal profile width alone. Compare the actual opening, retaining features, lens seating position and internal clearance with the L528 cross-section.

What information is needed for an L528 quote?

Include the required lens length and quantity, profile drawing, LED board details and intended application. Add your sample requirements and target delivery date where available.
